IMÁGENES SATELITALES DE MUESTRA DEL ÍNDICE DE VEGETACIÓN

NDICE DE VEGETACIÓN VERDE  – Mapa Coloreado

El Índice de vegetación verde – Mapa coloreado (GVC por sus siglas en inglés), colorea los valores del índice de vegetación verde (GVI por sus siglas en inglés) para mostrar la distribución espacial de vegetación por detección a distancia. El índice está relacionado al vigor del cultivo, cantidad de vegetación o biomasa, resultados de datos de entrada y factores ambientales, físicos y culturales que afectan a los cultivos. El algoritmo AutoAgroWatch se aplica a imágenes satelitales calibradas para separar la reflectancia de la vegetación de variaciones causadas por suelos subyacentes o agua. El producto se produce para un campo determinado así como para una región de interés.

ÍNDICE DE VEGETACIÓN VERDE AgroWatch™ – mapa definido (GVS por sus siglas en inglés) es un producto superior que combina información panorámica definida y valores GVC para mejorar la interpretación de la imagen manual deseada para facilitar la identificación y cartografía de importantes características espaciales. La información acerca de la densidad de biomasa verde está contenida en el producto original GVC que usa colores para mostrar varios niveles en incrementos de 5 (en una escala de 0 a 100). GVS usa la imagen pancromática registrada (recogida para preparar una imagen panorámica visible) para modular el brillo de cada color GVC. El resultado tiene las excelentes propiedades de una imagen panorámica definida, pero con números cuantitativos que están próximos (dentro de 2 unidades) de los números originales GVC.

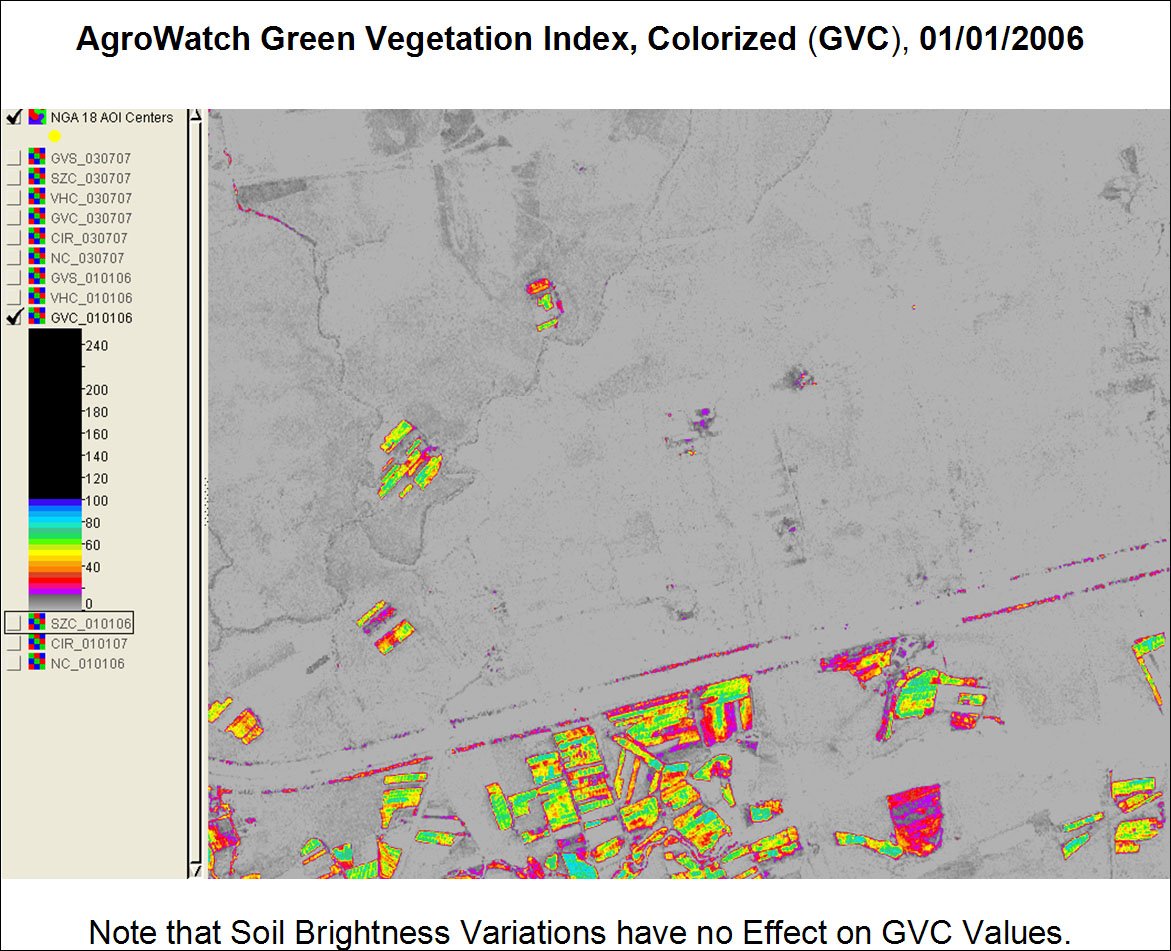

Índice de vegetación verde AgroWatch™, Coloreado (GVC), 01/01/2006

dÍndice de vegetación verde AgroWatch™, Coloreado (GVC), 01/01/2006

Índice de vegetación verde AgroWatch™, Coloreado (GVC), 03/07/2007

Los siguientes ejemplos del Índice de vegetación verde – Mapa definido, se aplican a imágenes QuickBird adquiridas el 01/01/06 y 03/07/07. El objetivo de estos ejemplos es ilustrar los tipos de extracción de características que pueden ser posibles usando el producto GVS. Cuando se compara a GVC y otros productos similares, la mejorada calidad de información disponible con GVS realza el proceso de análisis a través de una mayor delineación de áreas de cultivo y características del suelo para apoyar la administración de cultivos, utilizando un ambiente GIS.

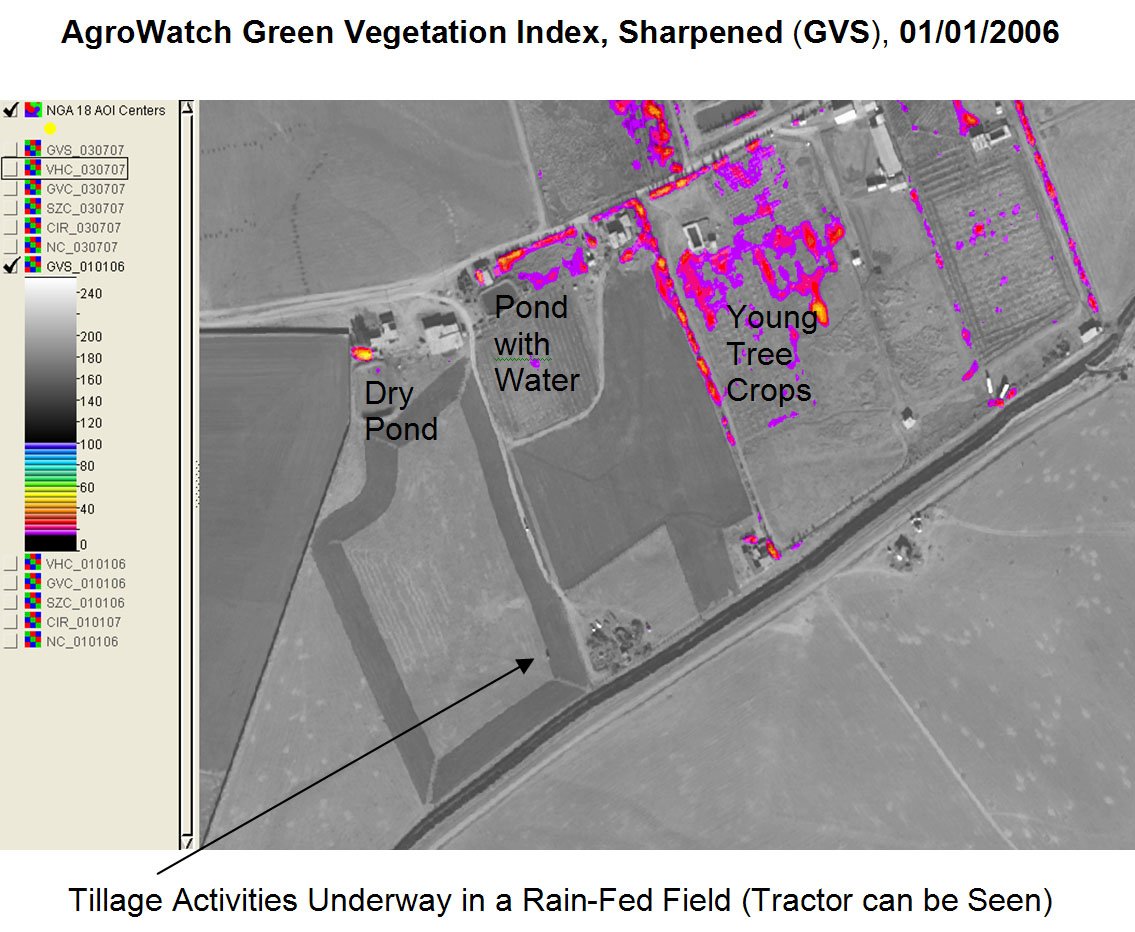

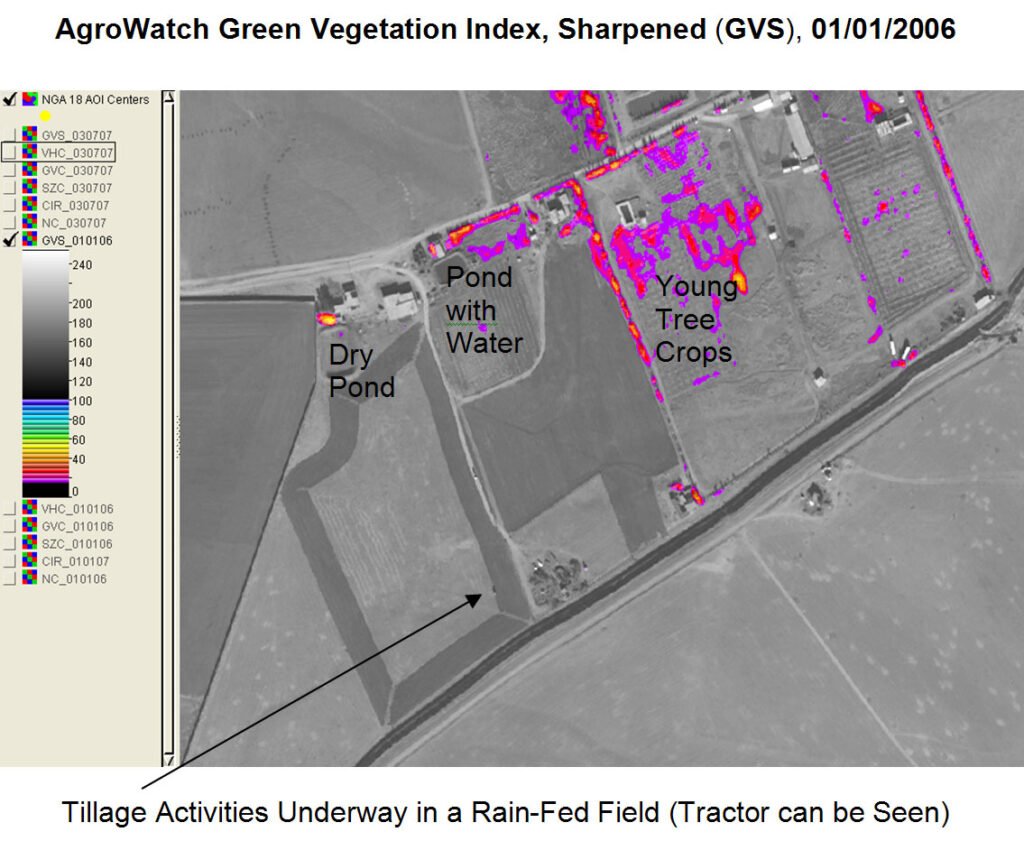

Índice de vegetación verde AgroWatch™, Definido (GVS), 01/01/2006

Índice de vegetación verde AgroWatch™, Definido (GVS), 03/07/2007

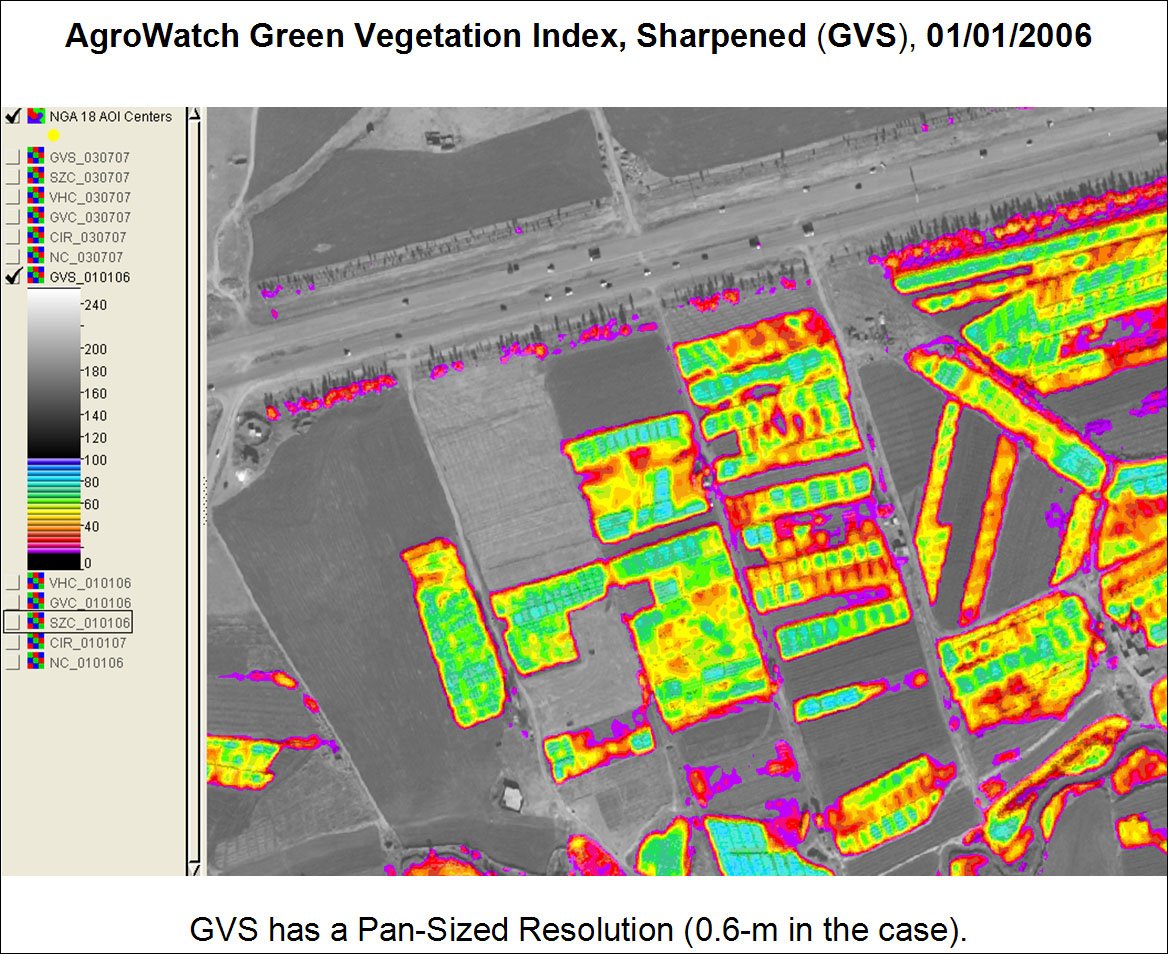

Índice de vegetación verde AgroWatch™, Definido (GVS), 01/01/2006
